Canned Motor Sludge Crusher

Canned Motor Sludge Crusher

Utilizes a canned motor to drive the crusher to help clear blockages in process lines.
Solid materials are crushed by the action of cutter blades, directly attached to the motor shaft, that rotate at high speeds (1000-3600 rpm).

Field
Chemical , Others
Other
Food/Beverage, etc

Spec

Output Max 20kW
RPM 1000~3600r/min
Major Wetted Material Austenitic stainless steel etc.

For other specifications please contact us.

Features

■ EASILY CLEAR CLOGGING DUE TO SOLIDS

A single crusher avoids the need to stop the process to manually remove solids accumulating at the bottom of the tank or in drain pipes.

■ POWERFUL CRUSHING BY UTILIZING CANNED MOTOR

Solid materials are crushed by cutter blades spinning at high speeds (1000-3600 rpm).

■ VERSATILE INSTALLATION

Three types of installation methods are available for efficient crushing: direct tank installation, line installation and pit installation.

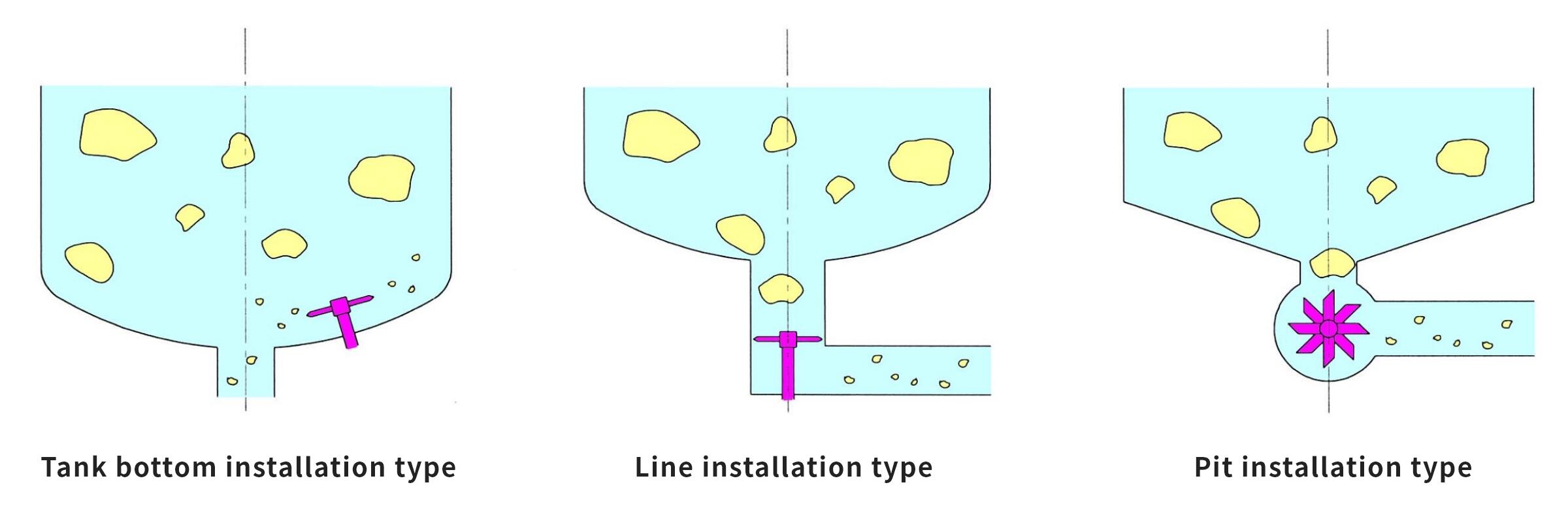

 VERSATILE INSTALLATION

・Tank bottom installation type

The crusher is installed directly in the tank to crush solids that accumulate on the tank bottom.

・Line installation type

Crusher is installed in the tank's drainage line to crush solids during drainage.

・Pit installation type

Pit is installed at the tank drain to collect solids and a crusher installed in the pit crushes the solids.

Use

Crushing of solids deposited in pipes and tanks, unclogging of pipes, etc.
