Multistage Pump (F-M, R-M, B-M Type)
A multistage canned motor pump for high TDH.
Even number of impellers are used in back-to-back arrangement to balance axial thrust.
- Field
- Chemical , High pressure gas , Semiconductors , Electricity , Others
- Other
- Food/Beverage, Medical, Boiler plant, Petroleum refining, Ship, etc
Spec
| Discharge Volume | Max 2.5m3/min |
|---|---|
| Total Head | Max 550m |
| Output | Max 220kW |
| Major Wetted Material | Austenitic stainless steel |
For other specifications please contact us.
Features
■ IDEAL FOR HIGH TDH
A single impeller can produce limited head, and depending on the flow rate, efficiency is lower.
The optimal number of impellers to match the required specification and unique design enable higher efficiency and quiet operation.
■ STABLE OPERATION BY SELF-BALANCING METHOD
The significantly higher axial load in a multistage canned motor type is balanced using the back-to-back impeller arrangement.
■ SUPPORTS VARIOUS REQUIREMENTS
Suitable for low-boiling point liquid that easily gasifies (reverse circulation type), high temperature liquids such as heat transfer medium (high temperature separation) and a wide range of specifications.
-

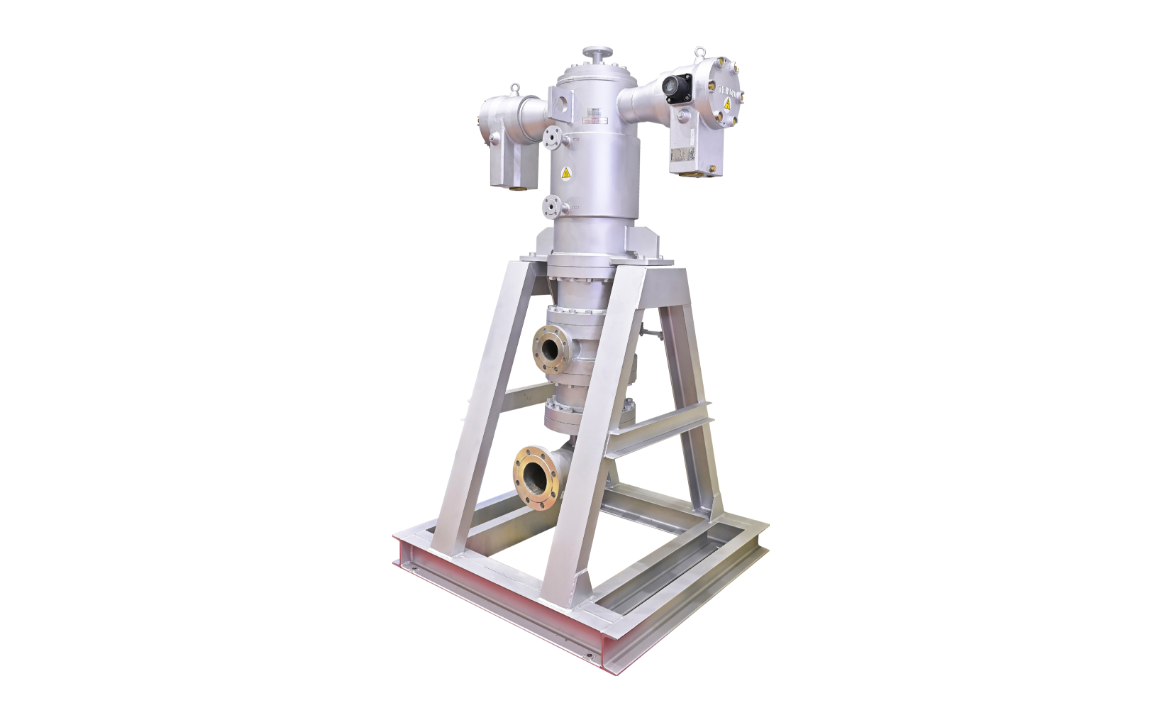

Reverse Circulation Type (R-M Type)
-

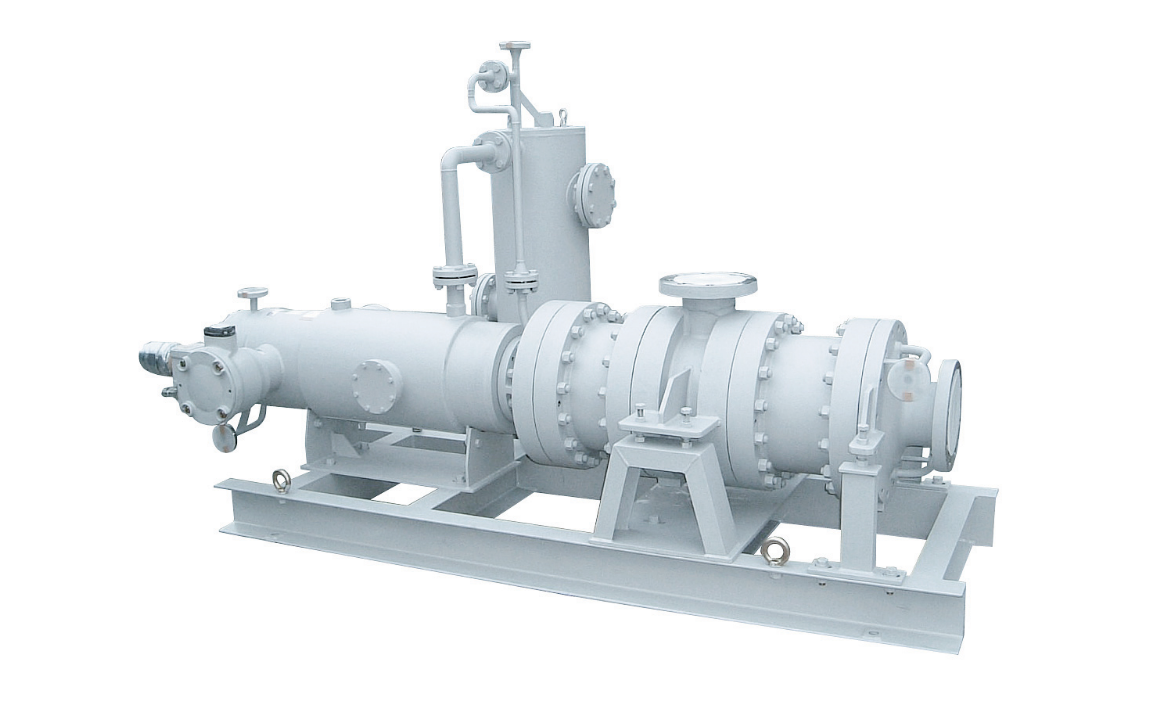

High Temperature Separation Type (B-M Type)
