Electric Oil Pump (for above-ground use)

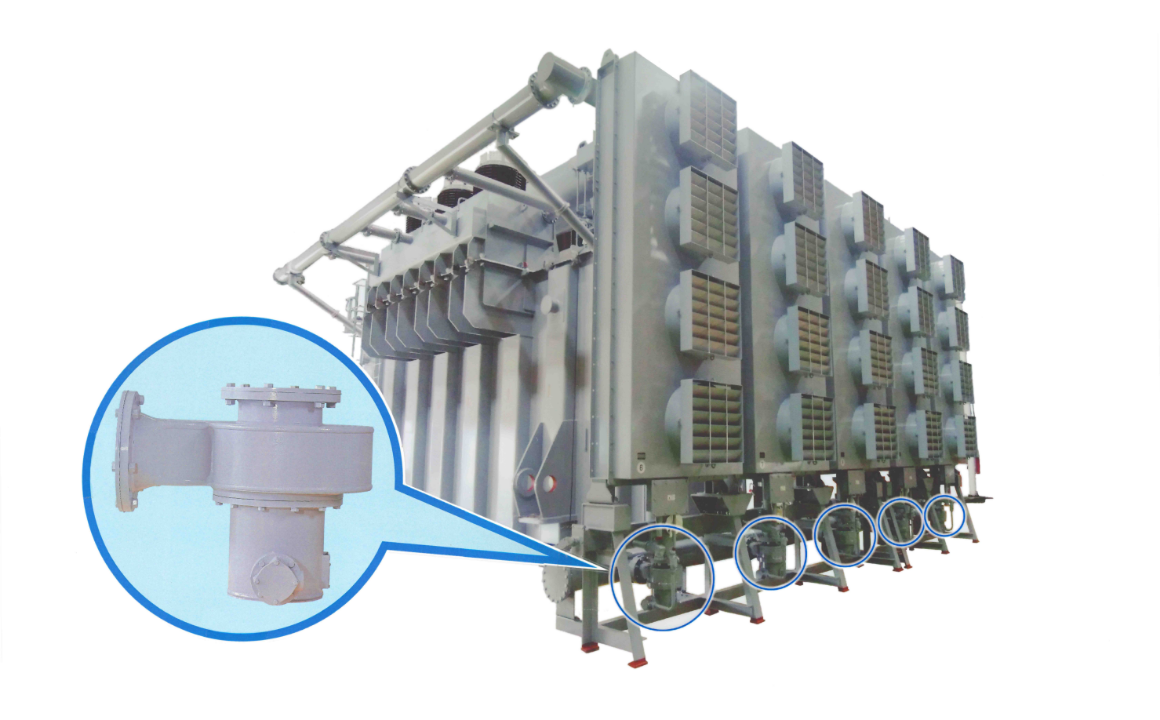

Electric oil pumps are used for oil circulation to cool large forced oil and air or self-cooling transformers and rectifiers used in power generation and substations.
Due to the public nature of the installation and the difficulty to shut down equipment for repair, the quality of these Electric oil pumps is highly controlled resulting in high reliability.
- Field
- Electricity
Spec
| Discharge Volume | Max 0.8m3/min |
|---|---|
| Total Head | Max 20m |
| Output | Max 22kW |
For other specifications please contact us.
Features
■ COMPLETELY LEAK-FREE
Environmentally and human friendly sustainable pump with a completely leak-free construction with no shaft sealed parts.
Utilizes TEIKOKU's inhouse technology developed over many years, ensuring long life and low noise.
■ HIGH EFFICIENCY
3D impeller is used for optimal pump design to meet a variety of specifications.
■ COMPACT DESIGN
It is a compact and lightweight pump constructed with miminal parts.
■ Also available in axial flow impeller configuration
Upon shutdown, the impeller moves down in the oil to reduce internal pressure loss, enabling energy saving.
It is designed for transformers with multiple ratings.
Oil-filled, self-cooling type is available for low loads and self-cooling type with oil feed type is available for high loads.
Internal pressure drop during stopage is neglibile.
