Sealless Gear Pump
Pump suitable for low flow / high head applications.
Integrated gear pump section and submersible oil motor allows selection of suitable model according to needs.
- Field
- Refrigerators , Electricity , Others
- Other
- Temperature controller
Spec
| Discharge Volume | Max 100L / min |
|---|---|
| Design Pressure | Max 1.8MPa |
| Output | Max 2.2kW |
For other specifications please contact us.
Features
■ COMPLETELY LEAK-FREE
Completely leak-free construction based on canned pump technology without shaft sealed parts produces reliable performance even under high pressure and high vacuum.
■ LONG LIFE, LOW NOISE
Trochoid gears are used for long life and low noise.
■ Various application
Used for transferring, circulating, and filtering of lubricating oil, food oil and fuel oil, and also as a hydraulic pump.
Used for circulation in turbo chillers.
Pit barrel type and Pipe type are available for selection based on the operating environment.
-

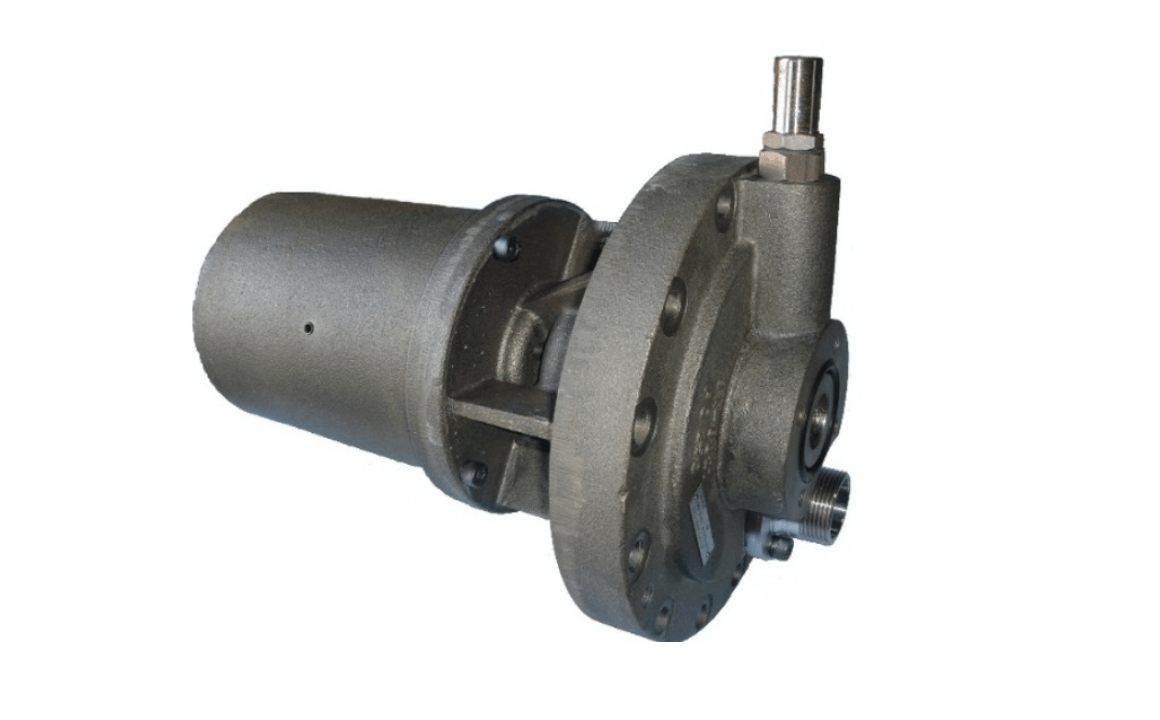

Pit barrel type
-

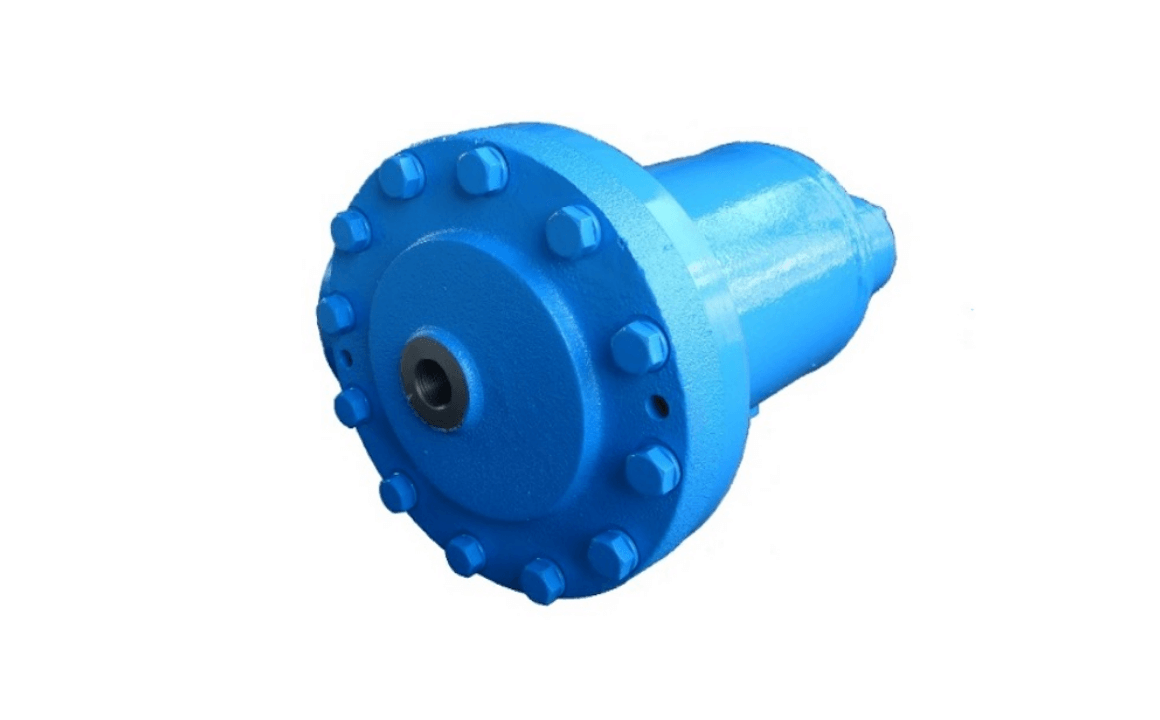

Pipe type
Use
For lubrication oil of Hot Wire Oil Purifier, Turbo chiller and various equipment
